Internal Scraper Self Cleaning Filter for High Viscosity Liquids with Precision Filtration 20-1000 um in Stainless Steel 304/316

Brand Name : YATE

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1

Price : $2300

Precision : 20-1000 um

Maximum Pressure : 1.25Mpa

Core Components : Cartridge filter housing

Condition : new

Origin : ShanDong

Connection Standard : Clamp , Flange ， Screw thread

Cleaningmethod : Manual / Automatic backwash

Material : Stainless Steel 304/316

Usage : Viscosity Liquild Filter

Applicable Industries : grease,paint,resin,viscose

Function : Filtering Liquid

Type : Scraper type

Contact Now

Internal Scraper Self-Cleaning Filter
The scraper type self-cleaning filter is a precision filtration device designed for high-viscosity liquids including resin, paint, and viscose. This automated system removes accumulated impurities from the filter element to ensure continuous operation and protect downstream equipment.
Key Features
  • Automated self-cleaning operation controlled by PLC system
  • Precision filtration for high-viscosity liquids
  • Pressure differential and time-based cleaning activation

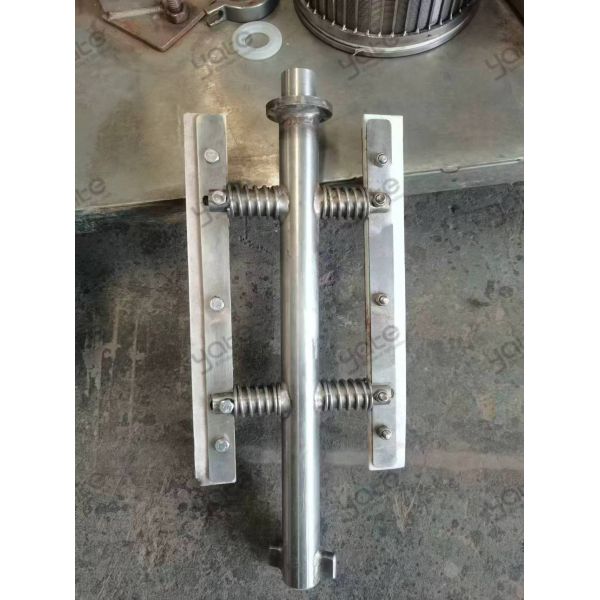

  • Scraper mechanism driven by reduction motor
  • Automatic blowdown valve operation
  • Ideal for resin, paint, and viscose applications
Working Process
Filtration Phase
Liquid enters through the inlet and passes through the stainless steel filter element. Impurities accumulate on the filter surface, creating a pressure differential between inlet and outlet that is monitored by pressure sensors.
Cleaning Phase
When the pressure differential reaches the preset value, the PLC control system activates the cleaning cycle. The reduction motor drives the scraper in a reciprocating or rotating motion to remove accumulated impurities from the filter element.
Discharge Phase
Following cleaning, the blowdown valve opens automatically to discharge removed impurities. Discharge timing is adjustable based on impurity concentration and filtration requirements.
Product Gallery
Internal Scraper Self Cleaning Filter for High Viscosity Liquids with Precision Filtration 20-1000 um in Stainless Steel 304/316

Internal Scraper Self Cleaning Filter for High Viscosity Liquids with Precision Filtration 20-1000 um in Stainless Steel 304/316
Internal Scraper Self Cleaning Filter for High Viscosity Liquids with Precision Filtration 20-1000 um in Stainless Steel 304/316
Internal Scraper Self Cleaning Filter for High Viscosity Liquids with Precision Filtration 20-1000 um in Stainless Steel 304/316
